New · Version 4

OptoRED

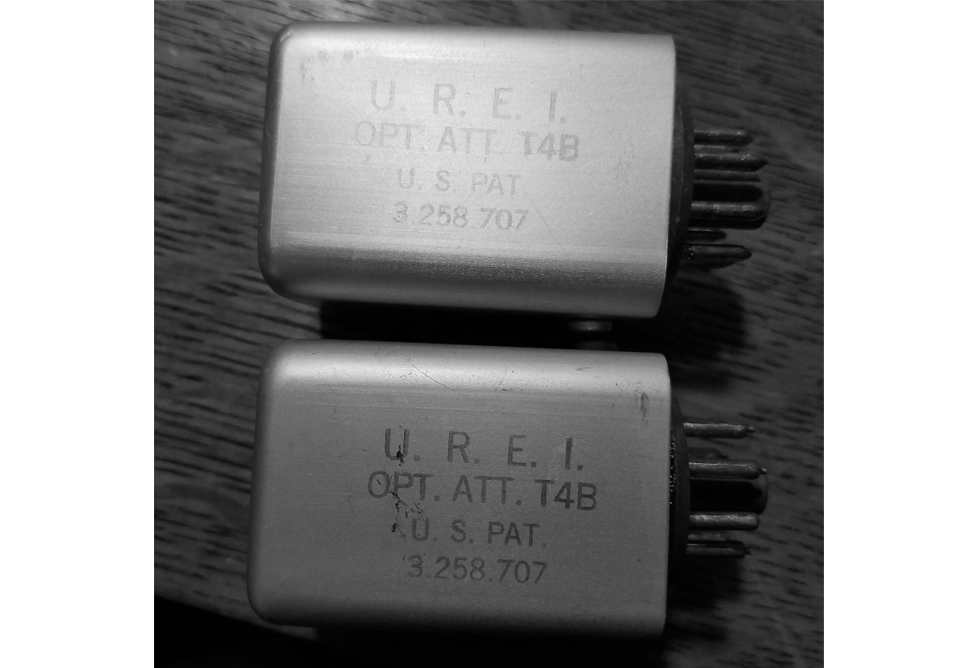

The classic American optical attenuator behind a brand-new face. The same smooth, invisible OptoRED gain riding, now with a live dynamics analyser, stereo meters and a HI CUT.

VST3AUAAXmacOSWindows
single license

Full-version trial for 15 days · Your OptoRED licence activates V4 · Installs beside V3

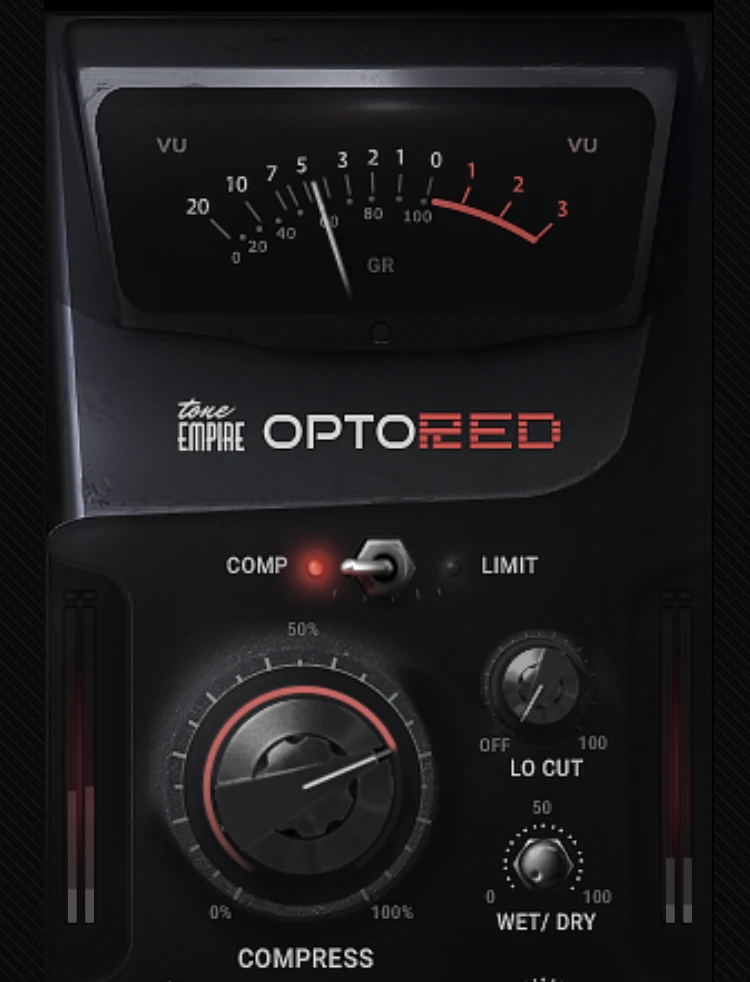

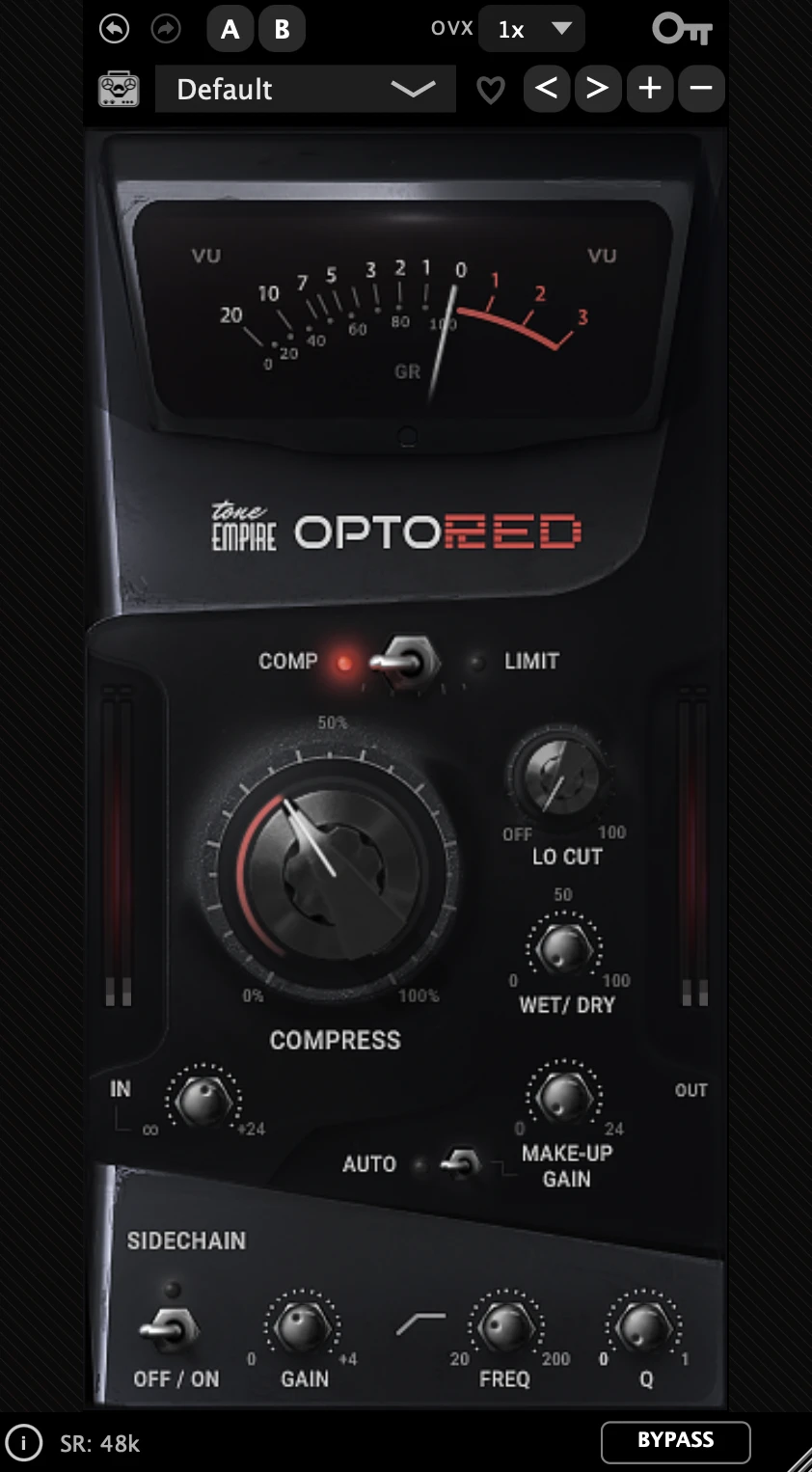

OptoRED V4 plugin: GR meter behind glass, the COMPRESS knob, LO CUT, HI CUT, WET/DRY, the sidechain and stereo IN / OUT meters

See it in action

Walkthrough & demos

Overview & walkthrough (filmed on V3 · same sound)

Invisible gain riding

Optical compression won because you can't hear it working — only that the vocal suddenly sits.

OptoRED models the classic American optical unit: smooth, musical, artifact-free gain riding for vocals, bass, drums and busses.

LO CUT, HI CUT and a sidechain high-pass shape what the detector hears; AUTO make-up and the wet/dry mix keep the workflow honest and parallel-ready.

Sunlit wooden room with a microphone stand

What's new in V4

Same sound.
A whole new face.

A new plugin, built from the ground up around the OptoRED you know.

OptoRED V4 COMPRESS knob with the COMP / LIMIT switch

The opto engine, untouched

Every control rebuilt in 3D and rendered frame by frame, all in a horizontal layout. Underneath, the optical cell, its curves and its timing are carried over exactly: set V4 like V3 and the two null.

Same opto engineCOMP · LIMITUp to 8× oversampling
OptoRED V4 DYNAMICS analyser: input, output and gain reduction over time, and the transfer curve

See every move: DYNAMICS

Press PANEL and a drawer slides out. Input, output and gain reduction scroll live, beside the transfer curve with the threshold and the point your signal sits on. Watch the opto catch each hit and let go.

Live gain reductionTransfer curveIn · Out
OptoRED V4 GR meter behind glass with the stereo IN meters

Meters you can read

The classic GR needle behind a real glass window, plus stereo peak meters on the way in and on the way out, left and right side by side.

GR needleStereo INStereo OUT
OptoRED V4 right half: HI CUT, WET/DRY, the sidechain high-pass and the OUT meters

Sidechain, HI CUT, a cleaner chain

The sidechain filter is now the true high-pass its panel always showed, listening to both channels, so the lows stop pumping the compressor. New HI CUT beside LO CUT, MAKE-UP next to the OUT meters.

SC high-passHI CUTAUTO make-up

Plus 101 factory presets in 10 banks, A/B, undo / redo, AUTO make-up, oversampling to 8× at one constant latency, and a window you can size to your screen.

Specifications

The fine print

TypeOptical compressor / limiter (COMP · LIMIT)
ExtrasSidechain high-pass · LO CUT · HI CUT · wet/dry mix
FormatsVST3, AU, AAX — 64-bit
macOS / WindowsmacOS 10.13+ (Apple Silicon & Intel) · Windows 10+
MeteringGR needle · stereo IN / OUT peak · DYNAMICS analyser
WorkflowAUTO make-up · A/B · Undo / Redo · resizable window
ProcessingUp to 8× oversampling, one constant latency
Presets101 factory presets in 10 banks
LicenseOnline activation · your OptoRED licence activates V4
Trial15-day full version, no feature limits

Try before you buy

The demo is the full plugin for 15 days — decide with your ears.

Tracking-ready

Low latency for real-time monitoring.

Instant delivery

License and installers arrive by email the moment checkout completes.

Set it. Forget it. Sit the vocal.
